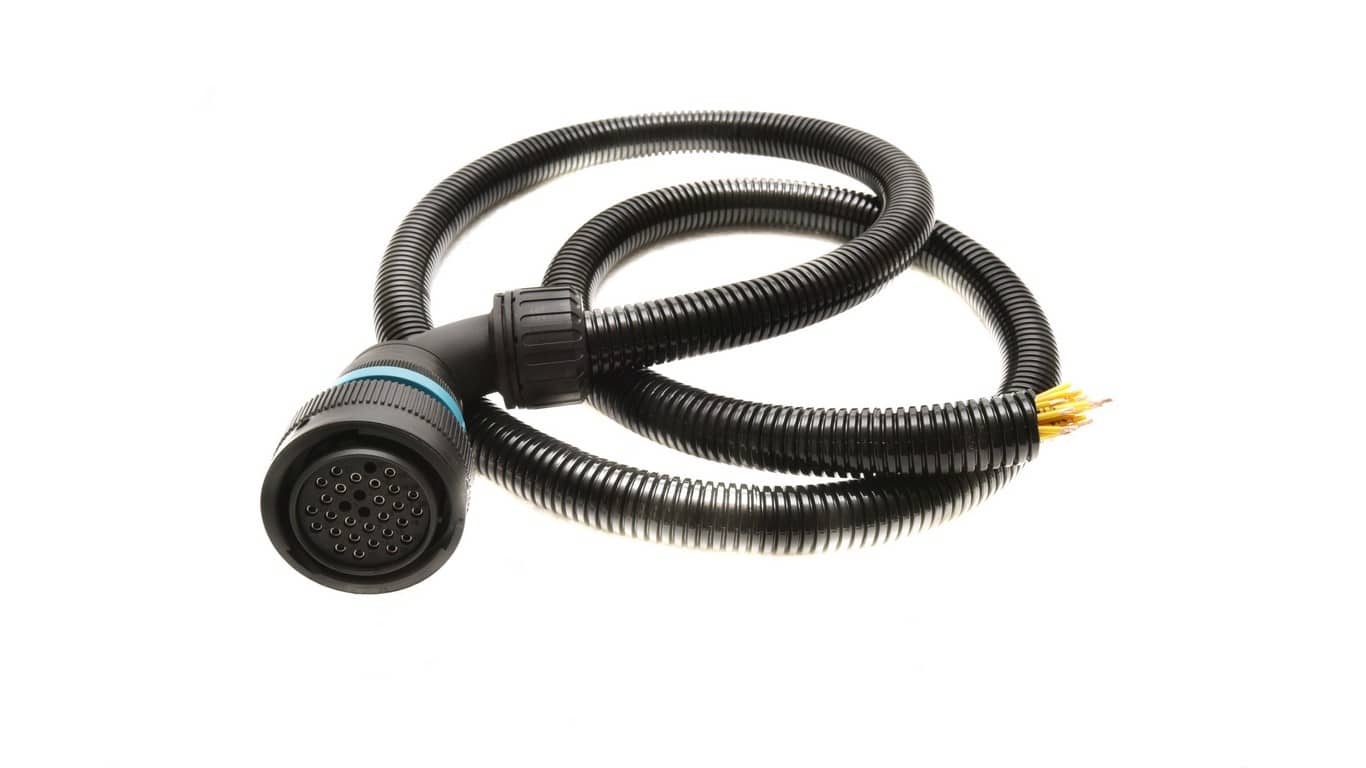

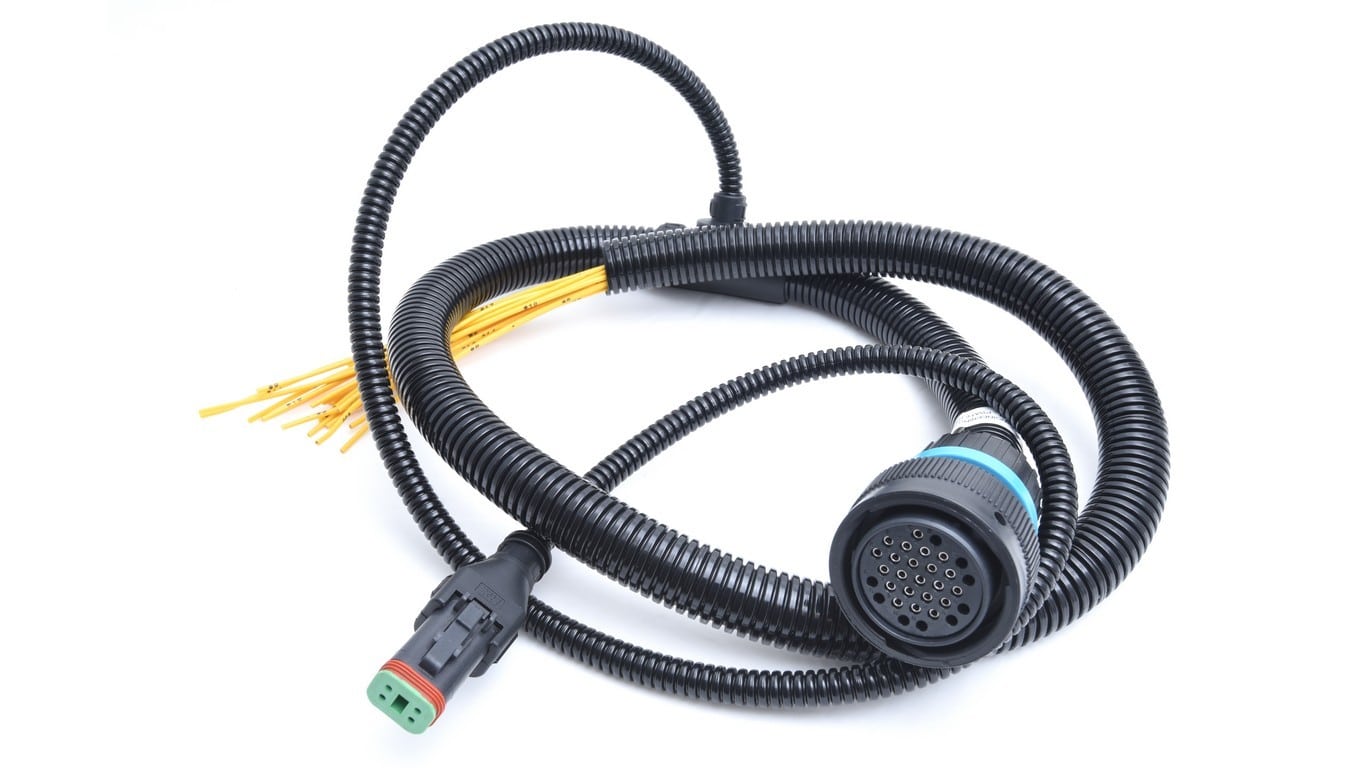

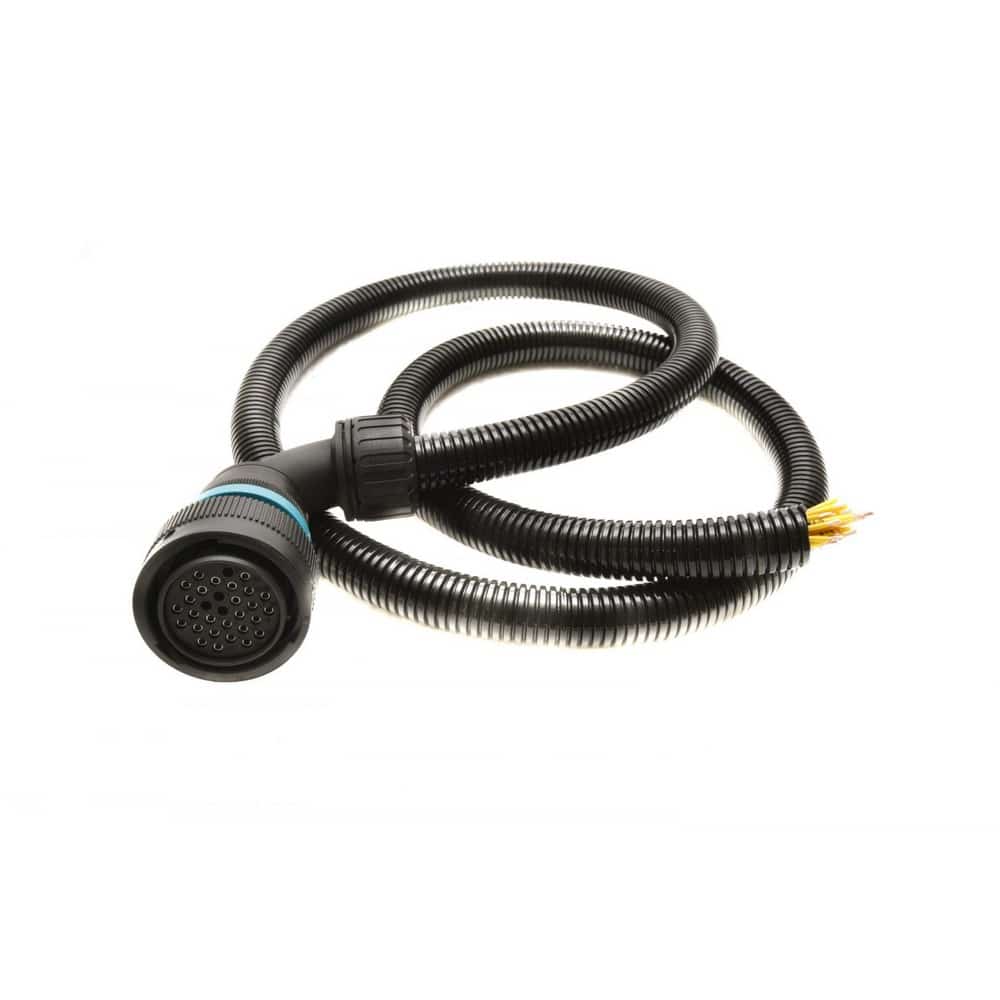

Lodar 6 function Soft Control valve block harness plugs straight into the Lodar PWM receiver to provide a waterproof connection into 19 pins for the inputs, the 6 PWM, Master and Safety Outputs, with the remaining pin outs containing sealing plugs. The HDP26-31-SE-LO15 Deutsch connector is fully populated with machine crimped terminals onto the yellow wires. Each 1.0mm UK made wire is numbered between 1 and 31 for ease of use and protected inside a 20mm diameter flexible conduit, connected straight onto the Deutsch plug (not 90 deg as in picture) with a total length of 1m. The bare wire ends are partially stripped ready for direct connection. We can customise this product to suit your installation or make plug and play. Like this:Like Loading…
