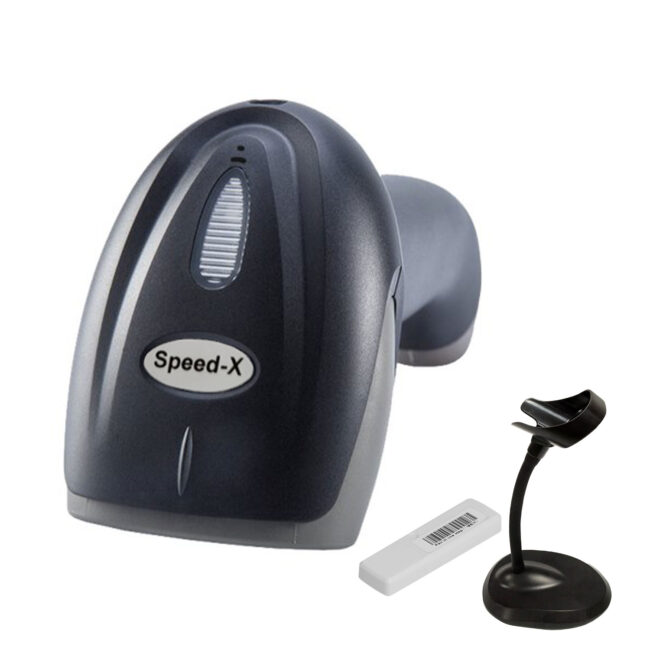

Description SPEEDX SP-9260 2D CMOS WIRED DESKTOP BARCODE SCANNER – Detail: Technical Specifications Electrical Characteristics Interface Supported USB HID KEYBOARD/USB VCP Input Voltage DC 5V±5% Current Max:335mA Optical Characteristics Image Sensor CMOS Array Sensor Sensor Resolution 640 X 480 Pixels Light Aimer 617nm LED Indication Buzzer & LED Trigger Auto-sense, Button Decoding speed 60FPS Performance Characteristics Scanning Angle Pitch angle:±55°;Skew angle:±55°;Tilt angle:±360° Field of View 43° H),33° V) Min Resolution 1D≥4mil, 2D≥5mil Min .PCS value 〉20% UPC/EAN 13（13mil） Language Multiple Languages Data Edition Support for custom data output Decode Capability 1D: Codabar,Code39,Interleaved2of5,NEC2of5, Code93, Straight 2 of 5 Industial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code128, GS1-128, UPC-A, UPC-E0, UPC-E1, EAN/JAN-13, EAN/JAN-8, MSI, GS1-DataBar Omnidirectional,GS1 DataBar Limited, GS1 DataBar Expanded, China Post(Hong Kong 2 of 5),GS1 Composite Codes,Codeblock A,Codeblock F,Code 32,EAN/JAN-8, ISSN, ISBN 2D：PDF417, QR Code, Data Matrix, Aztec code, HanXin code, Maxi Code, Micro PDF417, GS1 Composite Physical Characteristics Dimensions 85mm*85mm*140mm(L*W*H) Weight 370g Indicator Beeper, LED Environmental Characteristics Temperature -20°∽60°C (operation) -30°∽70°C (storage) Humidity Relative humidity: 5% to 95% (no condensation) Shock Drop Test 1.5m drop onto concrete surface Decoding Depth of Field Symbology Resolution Nearest Farthest Code 39 5mil 10mm 90mm Code 39 13mil 0mm 175mm UPC-A 3.34mil 10mm 170mm QR 20mil 0mm 130mm QR 30mil 0mm 180mm Pay Code（QR 3*3cm） – 10mm 320mm Pay Code（QR 2.3*2.3cm） – 0mm 260mm Weight: 0.50 KGs
